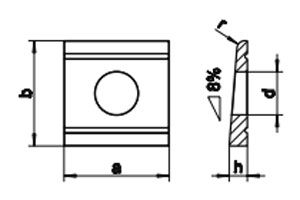

DIN 434 Square Taper Washer Dimensions
| Size | d | a | b | h | r |
|---|---|---|---|---|---|
| M8 | 9 | 22 | 22 | 3.8 | 1.6 |
| M10 | 11 | 22 | 22 | 3.8 | 1.6 |
| M12 | 13.5 | 26 | 30 | 4.9 | 2.0 |
| M16 | 17.5 | 32 | 36 | 5.9 | 2.4 |
| M20 | 22 | 40 | 44 | 7.0 | 2.8 |
| M22 | 24 | 44 | 50 | 8.0 | 3.2 |
| M24 | 26 | 56 | 56 | 8.5 | 3.2 |
DIN 434 Square Taper Washers Weights
| Size | Weight |
|---|---|
| M8 | 9.5 |
| M10 | 8.8 |
| M12 | 18.3 |
| M16 | 31.4 |
| M20 | 57.0 |
| M22 | 82.5 |
| M24 | 128.0 |
| M27 | 119.0 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
