Equivalent Standards

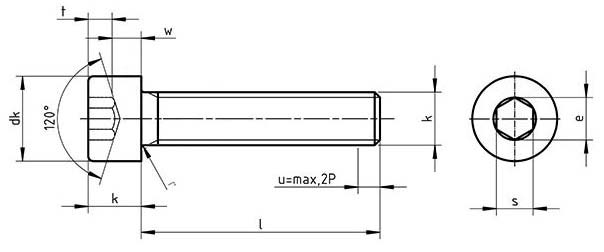

DIN 912 VG Hexagon socket Head Cap Screws full thread Dimensions
| d | s | t min. | b max. | k max. | dk max. |
|---|---|---|---|---|---|
| M1.4 | 1.3 | 0.6 | 10 | 1.4 | 2.6 |
| M1.6 | 1.5 | 0.7 | 12 | 1.6 | 3 |
| M2 | 1.5 | 1 | 14 | 2 | 3.8 |
| M2.5 | 2 | 1.1 | 16 | 2.5 | 4.5 |
| M3 | 2.5 | 1.9 | 18 | 3 | 5.68 |
| M4 | 3 | 2.5 | 20 | 4 | 7.22 |
| M5 | 4 | 4.58 | 22 | 5 | 8.72 |
| M6 | 5 | 5.72 | 24 | 6 | 10.22 |
| M8 | 6 | 6.86 | 28 | 8 | 13.27 |
| M10 | 8 | 9.15 | 32 | 10 | 16.27 |
| M12 | 10 | 11.43 | 36 | 12 | 18.27 |
| M14 | 12 | 13.72 | 40 | 14 | 21.33 |
| M16 | 14 | 16 | 44 | 16 | 24.33 |
| M18 | 14 | 16 | 48 | 18 | 27.33 |
| M20 | 17 | 19.44 | 52 | 20 | 30.33 |
| M24 | 19 | 21.73 | 60 | 24 | 36.39 |
