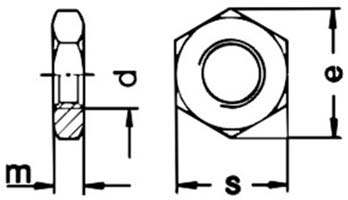

Dimensions For Fine Threads
| d | s | e | m |
|---|---|---|---|
| M 8 x 1 | 13 | 14.38 | 5 |
| M 10 x 1 | 17 | 18.9 | 6 |
| M 10 x 1.25 | 17 | 18.9 | 6 |
| M 12 x 1.25 | 19 | 21.1 | 7 |
| M 12 x 1.5 | 19 | 21.1 | 7 |
| M 14 x 1.5 | 22 | 24.49 | 8 |
| M 16 x 1.5 | 24 | 26.75 | 8 |
| M 18 x 1.5 | 27 | 29.56 | 9 |
| M 20 x 1.5 | 30 | 32.95 | 9 |
| M 22 x 1.5 | 32 | 35.03 | 10 |
| M 24 x 2 | 36 | 39.55 | 10 |
| M 30 x 1.5 | 46 | 50.85 | 12 |
| M 36 x 3 | 55 | 60.79 | 14 |
| M 42 x 3 | 65 | 71.3 | 16 |
DIN 936 Hex Jam Nuts Weights
| Size | Weight |
|---|---|
| M8 | 4.0 |
| M10 | 8.6 |
| M12 | 12.1 |
| M14 | 18.2 |
| M16 | 20.1 |
| M18 | 29.6 |
| M20 | 36.3 |
| M22 | 43.8 |
| M24 | 58 |
| M27 | 90 |
| M30 | 110 |
| M33 | 155 |
| M36 | 190 |
| M39 | 260 |
| M42 | 307 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
