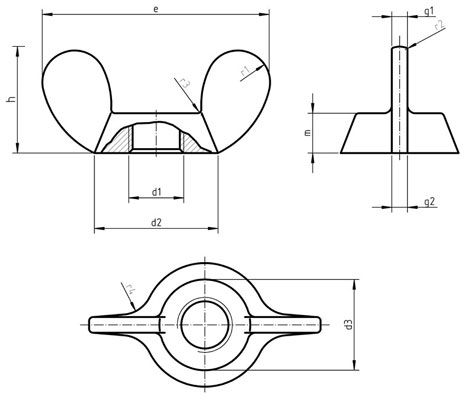

DIN 315 A Wing nuts with rectangular wings Dimensions
| d | D | e | h | m |
|---|---|---|---|---|
| M3 | 8 | 17.6 | 8.6 | 2.9 |
| M4 | 8 | 17.6 | 8.6 | 2.9 |
| M5 | 10.3 | 22.5 | 11 | 4.1 |
| M6 | 12.7 | 27.8 | 13.6 | 5.1 |
| M8 | 13.8 | 30.3 | 14.8 | 5.6 |
| M10 | 16.5 | 36.2 | 17.7 | 6.8 |
| M12 | 22.5 | 49.4 | 24.1 | 9 |
| M14 | 26.6 | 58.3 | 28.5 | 10.7 |
| M16 | 26.6 | 58.3 | 28.5 | 10.7 |
| M18 | 29.5 | 68.5 | 33.8 | 13.5 |
| M20 | 29.5 | 68.5 | 33.8 | 13.5 |
