DIN 7340 Tubular rivets

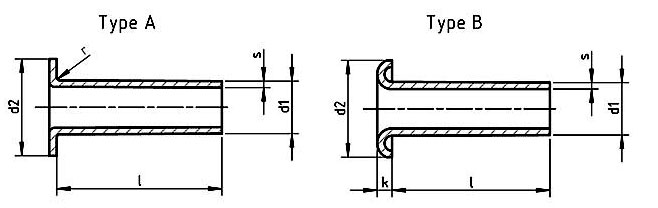

DIN 7340 Tubular rivets Dimensions

d1 s d2 k r
nominal size tolerance ±10% nominal size tolerance max.
1 ±0.03 0.2 1.6 ±0.15 0.25 0.2
1.2 ±0.03 0.2 2 ±0.15 0.3 0.2
1.5 ±0.03 0.2 2.5 ±0.15 0.35 0.2
1.5 ±0.03 0.25 2.5 ±0.15 0.4 0.2
2 ±0.03 0.25 3.2 ±0.2 0.4 0.02
2 ±0.03 0.3 3.2   0.45 0.25
2.5 ±0.05 0.25 4   0.4 0.25
2.5 ±0.05 0.3 4   0.5 0.25
2.5 ±0.05 0.4 4   0.6 0.3
3 ±0.05 0.25 4.5   0.5 0.3
3 ±0.05 0.3 4.5   0.5 0.3
3 ±0.05 0.5 4.5   0.6 0.3
4 ±0.07 0.3 6 ±0.25 0.65 0.4
4 ±0.07 0.4 6   0.7 0.4
4 ±0.07 0.5 6   0.8 0.4
